Wine Cellar Climate Control System

Wine Cellar Climate Control System

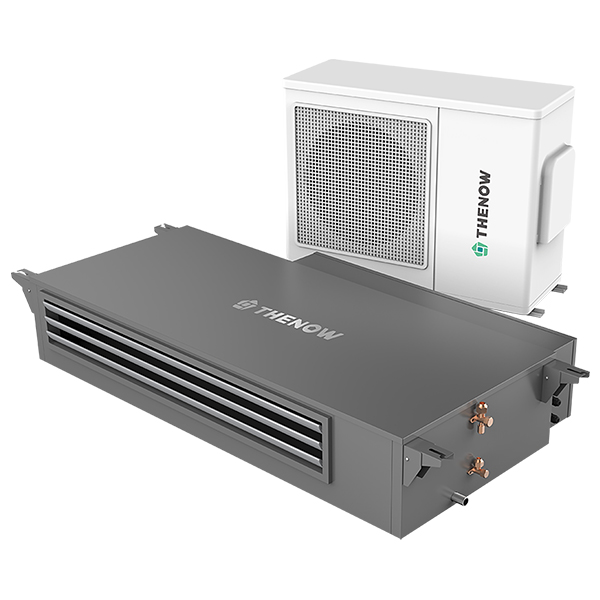

A balance of temperature and humidity is critical for the proper storage and aging of wine. Temperature affects the rate of maturation while the right humidity keeps corks in good shape.  Thenow Wine Cellar Climate Control System consists of an internal unit and an external unit, under our machine working, the temperature can be controlled between 10~16℃(±2℃) and humidity range of the refrigerated space can be maintained within 60~70% RH, which is better for wine's storage.

 Features of Wine Cellar Climate Control System:

  • Auto cooling and heating mode,keep wine cellar under constant temperature
  • Intelligent constant humidity with the circulating wet-film humidification system
  • High energy efficiency ratio air compressor,green energy saving
  • Famous brand air compressor,control board and sensor,stable quality and better performance
  • Environmental refrigerant
  • Adopt positive pressure drainage mode,draining is very smooth
  • Unique designed air channel,extremely quiet

 Technical Datas of Wine Cellar Temperature And Humidity Control Units:


CharacterModelHSN-J30HSN-J60HSN-J90HSN-J150
Power1P2P3P5P
Cooling CapacitykW2.557.512.5
Heating CapacitykW2.03.06.07.5
Recirculating Airm3/h40070011001800
External Static PressurePa30305065
NoisedB(A)50505362
Temperature10~16℃±2℃
Humidity50~75%±5%
Power Supply220V-50HZ-1P380V-50HZ-3P
Gross OutputkW4.87.512.120.6
Refrigeration Working OutputkW0.851.62.44.8
RefrigerantTypeR22/R407C/R134a
Refrigerant ControlCapillary/Thermostatic Expension Valve
Dischargekg0.651.61.83.2
CompressorTypeRotor/Totally Enclosed Vortex
PowerkW0.751.52.23.8
Evaporator
HeatingTypeElectric
PowerkW1.634.57.5
HumidifierTypeWet-film
Humidificationkg/h246
FanTypeLow noise,double inlet,centrifugal
Drive ModeInner Rotor
Air FilterG5+F7+Carbon（Optional）
Unit WeightThinner Ceiling Type-kgs42485876
Stand Type-kgs51597192
Liquid Tube6.3512.7
Air Tube12.719.05
Internal UnitDimensionLxWxH mm760*700*2601195*740*2601395*740*2601795*740*260
External UnitDimensionLxWxH mm810*275*540850*300*690960*320*8501020*450*1360
