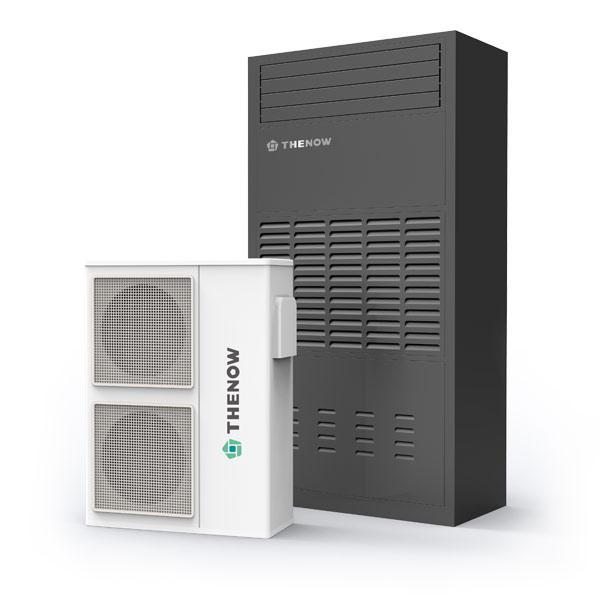

Precision Air Conditioning

Thenow precision air conditioning is a special air conditioner designed for sensitive sophisticated electronic equipments, the components of these devices are affected by temperature and humidity, which may cause malfunctions or affect the running performance. Therefore, it is necessary to control the temperature and humidity of the environment within a specific range to ensure the practical life and calculation performance of the device. Our precision air conditioning unit, with intelligent temperature and humidity automatic control system and

• Product Description

 Features of Precision Air Conditioning System:

• Requisite functions of cooling, heating, humidification and dehumidification
• Air temperature control (± 1.0°C)
• Easy access to all components ensures easy installation, service and maintenance
• PLC intelligent control system, temperature and humidity automatic control
• Compact in design, coating surface, corrosion resistance and long service life
• Core components are all from famous brand, good performance and quality.
• Lower power consumption and safe assurance

 Application of Precision Air Conditioning Unit:

• Medical equipment suites (MRI, CAT scan)
• Sophisticated instrument room
• Laboratories
• Printer/copier/CAD centers
• Record offices
• Hospital facilities (operating, isolation rooms)
• Telecommunications (switch gear rooms, cell sites)

 Technical Datas of Precision Air Conditioning And Heating:

Part One

Performance/Model					HSN-5	HSN-7	HSN-9	HSN-12	HSN-15	HSN-20
					HSN-5-W	HSN-7-W	HSN-9-W	HSN-12-W	HSN-15-W	HSN-20-W
Power Supply					1PH/AC 220V/50Hz		3PH/AC 380V/50Hz
Application Area(m²,floor height2.6m)					10	16	25	35	50	60
Power(P)					2	2.5	3	5	6	7
Performance  of the  complete machine	Cooling			kw	5	7	9	12.5	15	20
	Dihumidification			kg/h	4	5	7	8.5	10	15
	Heating			kw	5.6	7.9	10	13	16.5	22
	Air Flow			m³/h	800	1000	1300	2000	2400	3000
	Noise			dB(A)	55	56	58	60	60	65
	Controller				PC Intelligent Touch-tone
	Temperature			°C	18~26,±2
	Humidity			%RH	50~70,±5
	Total Power		kw		7.4	10.8	14.2	15.6	16.5	20
Cooling System	Compressor		Type		Rotary Type			Hermetic vortex type
			Q'ty		1	1	1	1	1	1
			Nominal Input Power		1.6	1.9	2.4	4	4.8	5.6
	Refrigerant		Type		R22
Auxiliary Electric Heating			Type		PTC
			Power(kw)		6	9	12	12	12	15
Humidifier			Type		Electrode
			Humidification(kg/h)		5	5	5	10	10	10
			Power(kw)		3.8	3.8	3.8	7.5	7.5	7.5
Internal Unit(Cabinet Type)		Dimension	L*W*H (mm)		850*470*1815	850*470*1815	850*470*1815	950*470*1915	950*470*1915	950*470*1915
Internal Unit(Horizontal Type)		Dimension	L*W*H (mm)		1400*900*550	1500*800*550	1500*800*550	1500*960*750	1500*960*750	1600*1060*750
External Unit		Dimension	L*W*H (mm)		950*350*845	950*350*845	950*350*845	950*350*1250	950*350*1250	950*350*1250
		Unit Q'ty			1	1	1	1	1	1
Cabinet Type Flange Air Inlet			Return Air(mm)		455*300	450*310	455*330	600*500	500*350	700*500
			Supply Air(mm)		300*250	350*300	350*300	450*350	540*340	550*450
Horizontal Type Flange Air Inlet(Optional)			Return Air(mm)		455*300	455*300	455*350	700*500	700*500	750*400
			Supply Air(mm)		420*320	350*300	440*270	860*250	860*250	900*250
Straight Forward Out Residual Pressure			Pa		30	30	30	30	30	30
Flange Forward Out Residual Pressure			Pa		50	80	100	120	120	150
Connection Tube Size			High-voltage Tube(mm)		6	9.52	9.52	9.52	9.52	12.7
			Low-voltage Tube(mm)		12	16	16	19	19	19

Part Two

Performance /Model					HSN-26	HSN-31	HSN-40	HSN-48	HSN-52	HSN-62
					HSN-26-W	HSN-31-W	HSN-40-W	HSN-48-W	HSN-52-W	HSN-62-W
Power Supply					3PH/AC 380V/50Hz
Application Area(m²,floor height2.6m)					80	100	130	130	160	190
Power(P)					10	12	14	16	20	24
Performance  of the  complete machine	Cooling			kw	26	31	36	42	52	62
	Dihumidification			kg/h	20	25	29	35	40	50
	Heating			kw	28.6	34.1	42.2	52.5	57.2	68.2
	Air Flow			m³/h	4000	4500	5600	6000	8000	9000
	Noise			dB(A)	65	66	64	66	68	68
	Controller				PC Intelligent Touch-tone
	Temperature			°C	18~26,±2
	Humidity			%RH	50~70,±5
	Total Power		kw		22.5	23.8	37	38.7	44.7	53.6
Cooling System	Compressor		Type		Hermetic vortex type
			Q'ty		2	2	2	2	2	2
			Nominal Input Power		8	9.6	11.2	12.8	16	19.2
	Refrigerant		Type		R22
Auxiliary Electric Heating			Type		PTC
			Power(kw)		15	15	27	27	30	36
Humidifier			Type		Electrode
			Humidification(kg/h)		10	10	15	15	20	20
			Power(kw)		7.5	7.5	11.5	11.5	16	16
Internal Unit(Cabinet Type)		Dimension	L*W*H (mm)		1250*570*2000	1250*570*2000	1400*670*2200	1600*670*2200	1850*870*2180	1850*870*2180
Internal Unit(Horizontal Type)		Dimension	L*W*H (mm)		1800*1350*850	1800*1350*850	1900*1550*900	1900*1550*950	1900*1750*1100	2300*1900*1340
External Unit		Dimension	L*W*H (mm)		950*350*1250	950*350*1250	950*350*1250	1490*870*910	1420*870*1140	1420*1000*1100
		Unit Q'ty			2	2	2	2	2	2
Cabinet Type Flange Air Inlet			Return Air(mm)		900*550	1000*500	1100*550	1100*600	1300*650	1400*700
			Supply Air(mm)		800*350	900*400	1000*350	1000*400	1250*400	1300*450
Horizontal Type Flange Air Inlet(Optional)			Return Air(mm)		1000*500	1000*500	1000*600	700*500	700*600	800*600
			Supply Air(mm)		900*300	900*350	1150*350	700*500	1247*450	1247*450
Straight Forward Out Residual Pressure			Pa		30	30	30	30	30	30
Flange Forward Out Residual Pressure			Pa		200	200	200	300	300	300
Connection Tube Size			High-voltage Tube(mm)		9.52	9.52	12	12	16	16
			Low-voltage Tube(mm)		19	19	19	22.23	28	28
